VRLA AGM DEEP CYCLE BATTERY |
R12-150AGM-FT |
|
|
| Series | VRLA AGM-R | Warranty | See Warranty Terms |
|---|---|---|---|
| Volts | 12 | Design | |
| Terminal Type | F9(M8) | ||
| Included Hardware | M8 stainless bolts & washers | ||
| Size & Thread | M8 | ||
| Charge | Discharge | |
|---|---|
| Charge Voltage Range | 14.7V @ 25°C (77°F) |
| Float Voltage Range | 13.8V @ 25°C (77°F) |
| Recommended Charge Current | 30 A |
| Maximum Charge Current | 45 A |
| Self-Discharge Rate | Less than 2% per month at 25°C (77°F) |
| Internal Resistance | 5 mΩ |
| Capacity |
|---|
| Hour Rate | Capacity / AMP Hour | Current / AMPs |
|---|---|---|
| @ 20 Hour Rate | 159 AH | 7.95 A |
| @ 10 Hour Rate | 150 AH | 15 A |
| @ 5 Hour Rate | 128 AH | 25.6 A |
| Cut Off Voltage | Constant Current Discharge | ||||||
|---|---|---|---|---|---|---|---|
| 1.8 VPC | 1 hr | 2 hr | 3 hr | 4 hr | 5 hr | 8 hr | 10 hr |
| 79.3 | 47.6 | 37.5 | 29.8 | 25.5 | 17.9 | 15 | |
| Specifications | |||
|---|---|---|---|
| Weight | 43.5 kg | 96 lbs | |
| Length | 565 mm | 22.2" | |
| Width | 110 mm | 4.33" | |
| Height Incl. Term. | 288 mm | 11.3" | |
| Product measurements & weights are calculated based on sample data. Individual specifications are subject to vary due to the manufacturing process & battery components. | |||
| Container | ABS | ||
|---|---|---|---|
| Cover | ABS | ||
| Handles | Rope / Plastic Handle | ||
|
|||
Cycle Life vs. Depth of Discharge

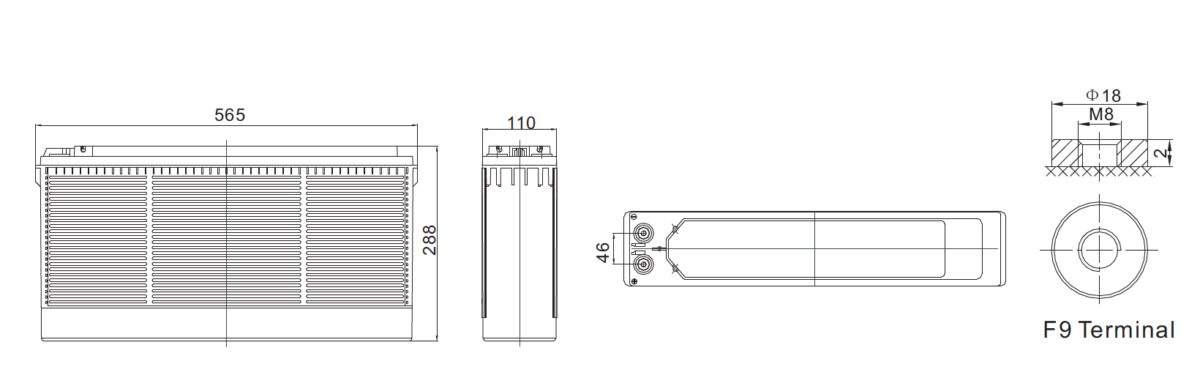

Detailed Illustration
